Carving An Old World Toothpick Holder

I’ve been fascinated by carved toothpick holders, especially the old European ones. Near the end of World War I a company called ANRI began producing and marketing hand carved products, both decorative and utilitarian. Toothpick holders are some of the more useful ones. They were mostly whimsical representations of women, men and gnomes. The carving style was very simple and some of the features were just added with paint. My intent was to retain the symplicity of the originals by limiting the number of tools used. I copied some of the original patterns before I tried my own designs. I discovered I was carving more details as I designed more patterns. This means you can attempt this project from a wide range of carving experience. I will focus on the aspects unique to toothpick holders such as the open mouth, the internal cavity and the limited area for the facial features.

MATERIALS:

* 3/4″ (19mm) hardwood dowel or hand carved dowel from basswood

* Basswood, 1 5/8″ (41mm) X 1 5/8″ (41mm) X 2 1/2″ (64mm)

* Minwax clear satin polyurethane liquid

* Acrylic paints, such as Jo Sonja in assorted colors of your choice

* Finishing wax, such as WATCO dark and light

TOOLS:

* Forstner bit, 3/4″ (19mm) and a drill press

* Carving knife with 1 3/4″ (44mm) blade

* #9 Gouge, 3/8″ (9mm)

* #11 Gouge, 1/8″ (3mm)

* Micro Gouge 3/16″ (5mm)

* V-tool, 60 degrees, 1/8 (3mm)

GETTING STARTED:



I usually design just a side view. I always make a cardboard template of my design. Make sure the toothpick hole is located toward the front of the profile but not so close that you may punch through when carving the details. Trace the profile onto a block of basswood and mark the center of the hole on the bottom. Locate the hole in the center, left to right, on the block.

Drill the hole before cutting the profile. The depth for the hole in this project is

1 3/4″ (44mm).

Use a bandsaw to cut the profile. Most profiles are simple enough to shape with a knife if you don’t have a bandsaw. In that case, trace the cardboard template on the opposite side to keep the profile aligned. I always draw a center line and add lines for details on the front and back before carving.

Begin carving by removing wood from both sides of the nose.

Continue shaping with a knife.

Work on both sides to keep the features symmetrical.

Taper the ears toward the face so the ear appears to stop under the beard.

Remove a wedge of wood between the back of the ear and the hat.



Carve the shoes and complete the other features of the body.



SHAPING THE MOUTH:

Shape the outside of the lower lip with the knife.

Shape the inside of the lower lip using the end of the knife blade. This is a good time to remove the surface left by the bandsaw.









Mark a line parallel to the shape of the upper lip. Leave enough space for an optional row of teeth. The roof of the mouth is recessed using a #9, 9mm (3/8″) palm tool.



The same tool is used to taper the top of the hole to complete the transition to the roof of the mouth. Work from the bottom of the hole. Work around the inside of the hole to taper it toward the lower lip.

CARVING THE FACE
Taper the sides of the nose into a modified tent shape. Because the nose aligns with the grain, this action resembles sharpening a pencil with a knife.
You now have more room to use a #11, 3mm gouge to form the area between the eyes. This cut will remove wood from the nose. Avoid cutting the hat.
This is the completed cut of the area between the eyes.
Use a #11, 5mm gouge to make a recessed area for a painted eye. Cut from the side of the head tapering upward toward, and stopping at, the bridge of the nose.

Use the #9, 9mm gouge to improve the tent-shape of the nose. This will add form to the wings of the nose.
Use a 5mm micro gouge the form the wing of the nose. This action is a stop cut.
Use the same tool for the removal cut. Wood is also removed from the upper lip with this action.
Shape the nostril with the same micro tool. Make a stop cut from the tip of the nose toward the lip.
Use the tip of the knife to complete the cut. Add shape to the nose with a knife if necessary.
Add several cuts to the beard to suggest hair. Use a small V-tool such as a 60 degree, 1/8″. Now would be a good time to separate the hat from the face using a knife. Note the shadow in the picture.
I cut a short cylinder from a 3/4″ dowel for the plug. I determine the length by testing the amount of toothpick exposed. I mark the dowel and cut it with a bandsaw. Any wood glue can be used to permanently hold the plug. Examine the complete project and remove any remaining surfaces left by the bandsaw.
PAINTING THE TOOTHPICK HOLDER:

Scrub the carving with dish soap and warm water using a denture brush. Thin the paint with water to a stain consistency and apply with a brush to the damp wood. Light colors, such as white and pink should not be thinned as much, if any.

Paint the eyes when the flesh is dry. Use a round brush to apply a white oval shape for each eye. Keep the eyes simple by painting a black dot in the center of the dry white oval. Add a reflection to the eye with a tiny white dot to the side of the dry black dot. Position the white dot in the same spot in each eye.

Teeth are optional. If I add them, I just paint white dots inside the upper lip. A V-tool can be used to add separation to the teeth before painting.

Wait at least 8 hours for the wood and paint to dry. Brush on a liberal amount of polyurethane allowing it to soak in and to fill the valleys. Wait 10 minutes and use paper towels to remove any poly remaining on the surface. Use a clean natural brush to remove what the towel couldn’t reach in the corners. Allow the sealer 8 hours to dry.

For this project I mixed 30% dark and 70% light WATCO finishing wax. Apply the wax with a brush ensuring all surfaces and corners are covered and filled. I wait about 20 minutes before wiping the excess off with a clean cloth. This time do NOT remove the excess from the corners. This technique will darken the paint giving the project an aged look. Set the project aside overnight to dry completely. If it’s still sticky, buff with a cloth.

———————————- Please Note ———————————-

Dispose of the cloths properly. WATCO wax contains boiled linseed oil so cloths and paper towels soaked with the wax can spontaneously combust.







Clock Peddler Project, Part 2

Clock Peddler Project, Part 2

This is the second of three posts showing a carving I made of an old-time clock peddler. (Part 1, Part 3) Here you will see many photos taken of the project as it evolved into a finished carving. I also show a picture of my tools and my carving bench. the project is mounted on a carving arm and held in place with a carving screw. My carving tools are designed for use with a mallet but only the very early stages required the mallet to remove larger amounts of wood. The remainder of the cuts were done by simply pushing the tools. You will also see a measuring device used to transfer dimensions from the model to the project. The first picture shows my mallet, a carving screw, two dividers, a carving arm and a plastic scale.

Painting Tip

Painting Tip

fullsizerender-3

Several people have offered painting tips on Facebook so I thought I would expand the tip about a holding device. A handle can be used to hold a small carving while carving and/or painting. Some have suggested carving a handle-shaped stick or some other form for ease in holding a carving. I found some cheap tool handles that were probably meant for files or replacement screwdriver handles. Flea markets and yard sales are good for these items. I cut the heads from drywall screws and other assorted self drilling screws. I made sure each one would fit in the pre-drilled handle hole and used epoxy glue to set a screw in each handle. If the hole is larger than needed, you will have to support the screw so it remains in line with the handle until the glue sets up. That’s not a big deal but it will be a better experience using the handle if you can easily screw it into the carving.

img_4042Using different sized screws is not necessary but can be helpful if you have a small base on your carving and a large screw will cause the wood to split.

img_4028-2

I happened to have a big chunk of pine, 3.5″ X 3.5″ X 21″ (90mm X 90mm X 533mm), that had seven holes conveniently drilled so I could use my handles. Each hole also had a pilot-hole in the bottom. This allows me to invert the handles for storage when they’re not in use.

img_4041img_4040-2img_4053

I took a class with CCA member Tom Wolfe where painting was part of the instruction. Tom used the same concept but instead of a heavy chunk of pine, he had a short log with angled chainsaw cuts to form a rough dome shaped top so it looked like a stump. That allowed holes to be drilled at angles around the top. I don’t remember how many holes were in his base.  If I have carvings that cause my base to tip, I add a clamp at the bottom to increase the size of it’s footprint.

img_4027

fullsizerender-4 By the way, the carvings pictured were inspired by an article by Dave Stetson (CCA) in the Winter issue 2016 of Woodcarving Illustrated Magazine.

Knives designed by Mertz

Don Mertz, a member of the Caricature Carvers of America, has a history of collaboration with the Helvie Knife company. Over the years they have produced a successful line of custom knives that suit Don’s whittlecarving style. Don’s work can be viewed at WoodBeeCarver.com. I own several of those knives but since the blade style was different from the one I use, I’ve delayed giving his a try. The other day I decided to see what I could or could not do. The pictures show the project I chose and the knives I used. They are in Don’s Signature series as numbers 2, 4 and 6. There are many more knife choices on the Helvie site. I did not succumb to the urge to grab my usual knife and a gouge or two because this was a whittlecarving challenge.

I thought a reasonable challenge would be a project offered by Dave Stetson, also a CCA member. It was in the Summer issue 2015 of Woodcarving Illustrated magazine. Dave’s advice is to make no cuts that would leave flat surfaces or sharp shadows. In other words, a soft smooth appearance. I, like Dave, would normally use gouges to achieve that look. My results were not exactly like Dave’s, but then I have trouble matching his results using the tools he recommends. I’m still reasonably happy with my result. I’m not ready to toss my straight edge knives but I know I have more options if the circumstances need the Mertz touch.

I used a block of Basswood one and a half inches square (38mm) by 3 inches long (76mm). I used Howard’s Feed n’ Wax as a finish on the raw wood.

IMG_3393

IMG_3394

IMG_3395

Carving a Wooden Thread Spool

I’ve been carving thread spools since the early 1980’s. I can’t recall how many I’ve done but they’ve been great for practice. I’ve done two chess sets. One went to a set collector in Australia. I used to carve a spool in exchange for more spools. After friends passed the word, I now have a lifetime supply. I like to carve them for families that have some of grandma’s spools. Grandchildren can have a memory trigger.

The most common question is about the kind of wood. My research has found that white birch was commonly used. I’ve found some too hard to carve but also, some too soft. Toss the hard ones you find. They’re rough on knife points. I’ve found some with grain blemishes but never with knots. Thread doesn’t work well with sap. The grain is usually pretty straight and sometimes is hard to locate. Manufacture of wooden spools stopped in the mid 1970’s. Of course modern spools are not made of wood so you’ll have to find yours at flea markets, antique stores, or EBAY. You may have friends that never throw anything away and still have a bag of them. You can also use what I call counterfeit spools. They’re made for crafting and have never had thread on them. Some of those are basswood. I like the old ones and like to keep the original labels on them.

Spools come in many sizes and shapes. The one I used for this project is 2 1/8 inches tall and 1 3/16 in diameter. Try to find one a couple of inches tall for your first attempt unless you’re also a watchmaker. The shape may offer special challenges to your creativity. Some spools have a thin waist to allow for more thread. Some are shaped like a barrel. Some are only a half inch tall. My goal is to make the spool into a head rather than a relief carving of a face. There’s more wood available than you think so go deep. Of course a cylinder of wood is just a cylinder and not the proportion of a skull and neck. Space is limited and ears end up close to the eyes or the hair takes up the space for the ear. On most of mine, the edges of the carving just blend into the rest of the spool. Due to poor planning, I sometimes run out of space to develop a chin. Except for long whiskers, walking stick faces can be carved into spools.

Antique bobbins from weaving looms can also be carved. They’re the taller cousins of thread spools. Most of those I’ve found are oak or maple. I like the oak bobbins that have absorbed lots of natural lanolin from wool yarn. The lanolin softens the wood. Otherwise the wood is hard and was chosen because it can take a beating.

I always wear a carving glove to hold the spool. I’ve been told about devices to clamp the spool and allow a better grip. I still recommend a carving glove. After carving and signing the spool, I use Howard’s Feed-n-Wax to completely cover the wood. Buff with an old toothbrush. The tools I used for this project are: 2mm and 4mm V-tools, 8mm and 10mm #11 gouges, 2mm and 3mm #9 gouges, and a knife.

Tools

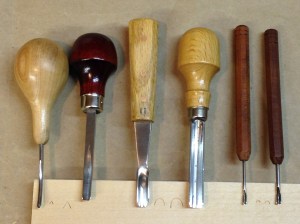

Tools used for this spool. Knife not shown.

The following description appeared in Carving Magazine issue #31. The publisher is now out of business but you may be able to locate a copy somewhere in the woodcarving universe.

Draw a center line and add lines for the hair. The ends of the hair line just fade into and around the spool. Place the part in the hair to the side of the centerline to add interest. Notice I added a line for the eyes and the bottom of the nose.

Draw a center line and add lines for the hair. The ends of the hair line just fade into and around the spool. Place the part in the hair to the side of the centerline to add interest. Notice I added a line for the eyes and the bottom of the nose.

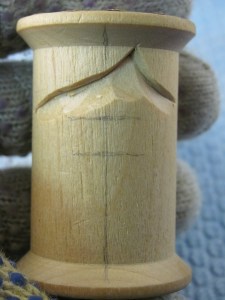

Use a 4mm V-tool to cut below the hair line. Using a knife, begin to reduce the forehead {continuing the work done with the V-tool.)

Use a 4mm V-tool to cut below the hair line. Using a knife, begin to reduce the forehead {continuing the work done with the V-tool.)

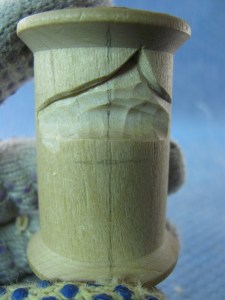

Use an 11 mm #11 gouge to cut the eye line. I used the same tool to reduce the forehead more to allow room for the gouge to deepen the eye line. Check the profile occasionally to gauge the relative depth of the forehead, eyes and nose tip.

Use an 10 mm #11 gouge to cut the eye line. I used the same tool to reduce the forehead more to allow room for the gouge to deepen the eye line. Check the profile occasionally to gauge the relative depth of the forehead, eyes and nose tip.

Cut below the nose at the line. Just use a knife. Make sure the cut deep enough to expose the width of the nose.

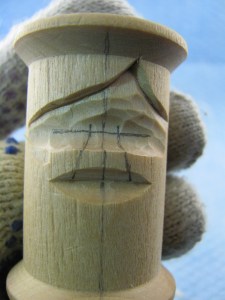

Cut below the nose at the line. Just use a knife. Make sure the cut deep enough to expose the width of the nose.

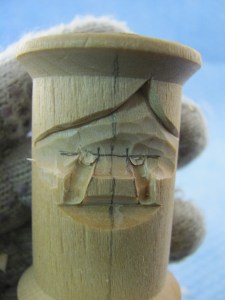

Use an 8mm #11 gouge to define the width of the nose. I like to draw lines before I use the gouge to make sure the nose will be symmetrical. Pencil lines are easily adjusted.

Use an 8mm #11 gouge to define the width of the nose. I like to draw lines before I use the gouge to make sure the nose will be symmetrical. Pencil lines are easily adjusted.

Use a knife to raise the wings of the nose.

Use a knife to raise the wings of the nose.

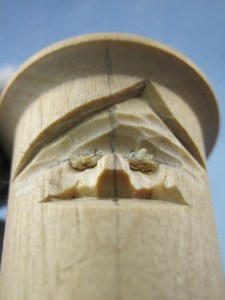

I taper the nose to resemble a tent. Notice in the picture the bridge of the nose retains a flat area. The nose is small and could break easily, so I carefully use a knife. For a nose this size, I used a 3mm #9 gouge to remove wood from the front of the wings continuing up the sides of the nose into the corner of the eye.

I taper the nose to resemble a tent. Notice in the picture the bridge of the nose retains a flat area. The nose is small and could break easily, so I carefully use a knife. For a nose this size, I used a 3mm #9 gouge to remove wood from the front of the wings continuing up the sides of the nose into the corner of the eye.

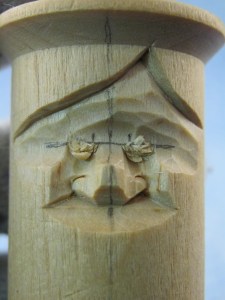

I use the 3mm #9 again to form the outside edge of the wings. Make a stop cut by pushing the gouge in at an angle that causes the tool handle to extend across the center line. This way you avoid cutting behind the wing. With the same tool, make the removal cut by cutting into the cheek.

I use the 3mm #9 again to form the outside edge of the wings. Make a stop cut by pushing the gouge in at an angle that causes the tool handle to extend across the center line. This way you avoid cutting behind the wing. With the same tool, make the removal cut by cutting into the cheek.

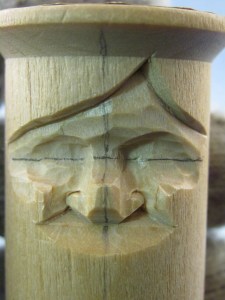

Use an 8mm #11 to develop the eye area. Be sure to reserve space between the eyes at the top of the nose to be able to start working in the eyebrows.

Use an 8mm #11 to develop the eye area. Be sure to reserve space between the eyes at the top of the nose to be able to start working in the eyebrows.

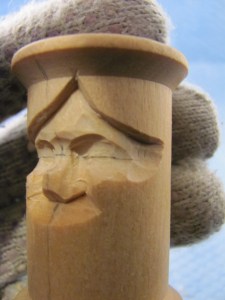

Use the 10mm #11 to narrow the face at the eye line and a knife to smooth the ridges at the temple.

Use the 10mm #11 to narrow the face at the eye line and a knife to smooth the ridges at the temple.

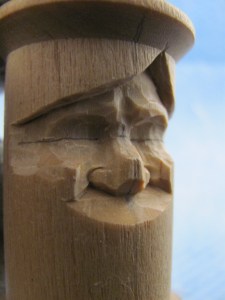

Use a #9 gouge to separate the eyebrows. I used a 3mm. The forehead was not recessed enough so I used a knife to push it back. Using the area near the tip of the blade, roll the brow up to the hair line, leaving the brow area for some eyebrow hair later.

Use a #9 gouge to separate the eyebrows. I used a 3mm. The forehead was not recessed enough so I used a knife to push it back. Using the area near the tip of the blade, roll the brow up to the hair line, leaving the brow area for some eyebrow hair later.

t helps to redraw the eye line and upper eyelid line. Using a very sharp 2mm V-tool, cut the upper eyelid line. Notice this cut dips slightly below the eye line and continues around the head.

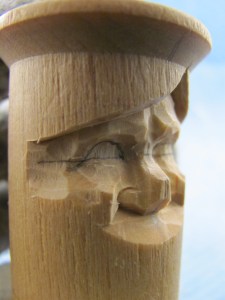

It helps to redraw the eye line and upper eyelid line. Using a very sharp 2mm V-tool, cut the upper eyelid line. Notice this cut dips slightly below the eye line and continues around the head.With the knife tip, lightly trace the lid cuts to make a stop-cut. Still using the knife, remove a tiny amount of wood below the stop-cut. Using the V-tool again, make a cut parallel and slightly below the lid line. This cut makes the lower edge of the upper lid. Again use the knife tip to trace the new cut and remove wood while shaping what will become the eye ball.

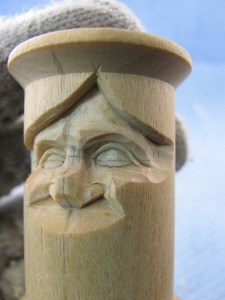

Here is another view of the eye cuts.

Here is another view of the eye cuts.

With the knife tip, lightly trace the lid cuts to make a stop-cut. Still using the knife, remove a tiny amount of wood below the stop-cut. Using the 2mm V-tool, make a cut parallel and slightly below the lid line. This cut makes the lower edge of the upper lid. Again use the knife tip to trace the new cut and remove wood while shaping what will become the eye ball.

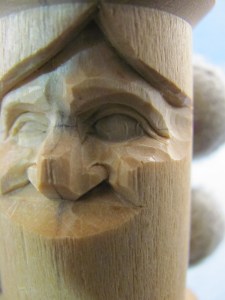

Use the V-tool again to define the upper edge of the lower lid. Because space is limited, I start these cuts in the middle and toward the corners. Remember the lower lid is shorter than the upper lid.

Use the V-tool again to define the upper edge of the lower lid. Because space is limited, I start these cuts in the middle and toward the corners. Remember the lower lid is shorter than the upper lid.

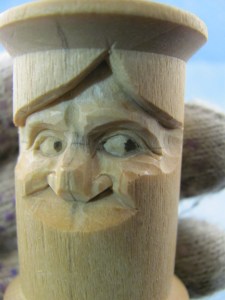

Trace the v-cut and use the knife tip to clean and shape the eyeball. Remember to remove a little triangle from each corner of the eye to create the impression of a ball. Try to eliminate flat spots on the exposed ball. I like to mark the iris/pupil location with a pencil before committing to the cut. To make him look more interesting, I’ll have him look to his left.

Trace the v-cut and use the knife tip to clean and shape the eyeball. Remember to remove a little triangle from each corner of the eye to create the impression of a ball. Try to eliminate flat spots on the exposed ball. I like to mark the iris/pupil location with a pencil before committing to the cut. To make him look more interesting, I’ll have him look to his left.

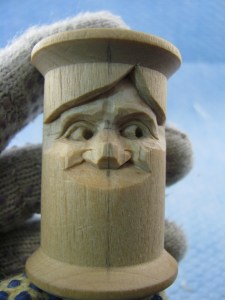

I take the easy way out on these tiny eyes by just making a negative space for the iris/pupil. For this face, a 2mm #9 just fits between the upper and lower lids. Push straight in and avoid nicking the lids. I use the point of my knife and sometimes a 1.5 mm #9 to remove the wood and create the shadow.

I take the easy way out on these tiny eyes by just making a negative space for the iris/pupil. For this face, a 2mm #9 just fits between the upper and lower lids. Push straight in and avoid nicking the lids. I use the point of my knife and sometimes a 1.5 mm #9 to remove the wood and create the shadow.

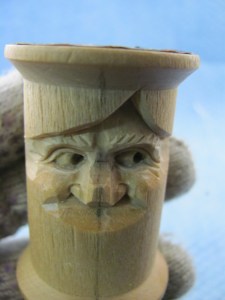

Now for a few last details around the eyes. Reduce the outside end of the lower lid to create a tiny shadow that suggests the lower lid is covered by the upper one. Use the small V-tool to cut a lower lid line curving like a reclining “S”. With a knife, round over any ridges and blend the brow with the rest of the face. While you’re rounding and shaping, work on the cheek mounds. Use the small V-tool to add a few eyebrow hairs. Don’t get carried away. A few will do.

Now for a few last details around the eyes. Reduce the outside end of the lower lid to create a tiny shadow that suggests the lower lid is covered by the upper one. Use the small V-tool to cut a lower lid line curving like a reclining “S”. With a knife, round over any ridges and blend the brow with the rest of the face. While you’re rounding and shaping, work on the cheek mounds. Use the small V-tool to add a few eyebrow hairs. Don’t get carried away. A few will do.

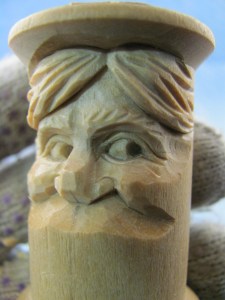

We can finish the hair now. Use a knife to remove ridges and taper both sides toward the part. I use either of the V-tools to add random hair lines (sometimes both). The hair lines shouldn’t be cut completely from end to end - they should be carved to suggest they’re going to meet at the part. Just blend them into the spool as they disappear around the sides. Don’t go around too far or the viewer will expect as much detail on the rest of the head. You can cut up into the flared part of the spool to round the top of the hair and get a few more strands. Remember the cuts will be across the grain so have a sharp tool. Notice the extension of the smile lines.

We can finish the hair now. Use a knife to remove ridges and taper both sides toward the part. I use either of the V-tools to add random hair lines (sometimes both). The hair lines shouldn’t be cut completely from end to end – they should be carved to suggest they’re going to meet at the part. Just blend them into the spool as they disappear around the sides. Don’t go around too far or the viewer will expect as much detail on the rest of the head. You can cut up into the flared part of the spool to round the top of the hair and get a few more strands. Remember the cuts will be across the grain so have a sharp tool. Notice the extension of the smile lines.

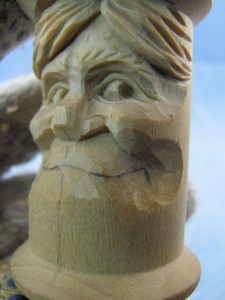

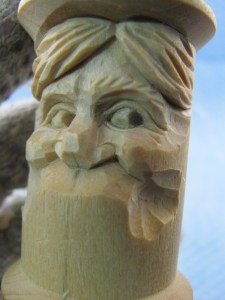

Even though the spool is round, the mouth and teeth must fit the head. Remember grandpa’s dentures were not as wide as his head. We’re going to concentrate on the dental mound. Use an 10mm #11gouge to deepen the area under each cheek. Because the muscles stretch the mouth a little, the mouth will be a little wider than the distance between the center points of the eyes. Use a knife to shape the upper lip back into the area prepared under the cheeks. Draw the lip line. Notice the ends do not touch the expression lines that form the cheeks.

Even though the spool is round, the mouth and teeth must fit the head. Remember grandpa’s dentures were not as wide as his head. We’re going to concentrate on the dental mound. Use an 10mm #11gouge to deepen the area under each cheek. Because the muscles stretch the mouth a little, the mouth will be a little wider than the distance between the center points of the eyes. Use a knife to shape the upper lip back into the area prepared under the cheeks. Draw the lip line. Notice the ends do not touch the expression lines that form the cheeks.

Read above.

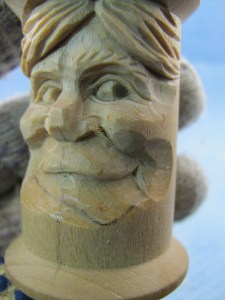

Use a V-tool to remove wood under the lip line. Use a knife to trace a stop cut into the v-cut and continue removing more wood below the lip.

Use a V-tool to remove wood under the lip line. Use a knife to trace a stop cut into the v-cut and continue removing more wood below the lip.

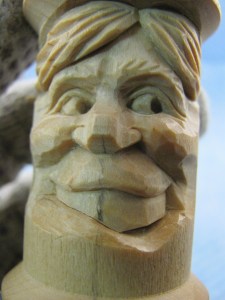

Draw the upper edge of the lower lip and cut above it with the V-tool. Once again trace the cut and begin removing wood to shape the teeth. Keep in mind the teeth should appear to protrude from behind the upper lip and tuck behind the lower lip. The curve of the teeth should be the same on both sides of the center line. Invert the spool to double check the balance. Because the lower lip dips below the upper teeth on the right side, mark a line for the lower edge of the teeth. I use a knife to create the negative space between the teeth and the lower lip. Rest the blade on the lip as a guide. This will make the lip disappear into the mouth. A variation of this face could show a lower tooth (or two) instead of the opening.

Draw the upper edge of the lower lip and cut above it with the V-tool. Once again trace the cut and begin removing wood to shape the teeth. Keep in mind the teeth should appear to protrude from behind the upper lip and tuck behind the lower lip. The curve of the teeth should be the same on both sides of the center line. Invert the spool to double check the balance. Because the lower lip dips below the upper teeth on the right side, mark a line for the lower edge of the teeth. I use a knife to create the negative space between the teeth and the lower lip. Rest the blade on the lip as a guide. This will make the lip disappear into the mouth. A variation of this face could show a lower tooth (or two) instead of the opening.

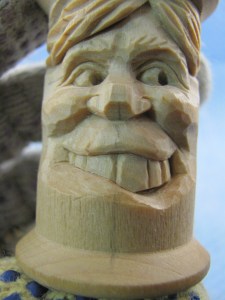

Lay out the teeth with a pencil. Start with the center teeth. They should be the same width. The teeth on the left side are easy because they just get tiny cuts to create a shadow between them. Because the right side of the mouth exposes more of each tooth, and maybe one more than on the left, most of the work is done there. Remember the curve has already been established so avoid changing it as the teeth are defined. Note how I have created a shadow inside the mouth at the back tooth. Remove wood from inside the cheek, not the tooth, to achieve this effect.

Lay out the teeth with a pencil. Start with the center teeth. They should be the same width. The teeth on the left side are easy because they just get tiny cuts to create a shadow between them. Because the right side of the mouth exposes more of each tooth, and maybe one more than on the left, most of the work is done there. Remember the curve has already been established so avoid changing it as the teeth are defined. Note how I have created a shadow inside the mouth at the back tooth. Remove wood from inside the cheek, not the tooth, to achieve this effect.

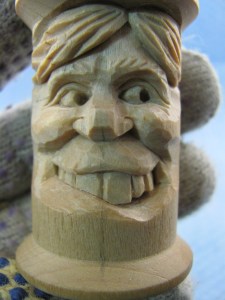

I use a knife tip to divide and shape the teeth. If you need to expose more tooth area, you can do this by lowering the lip line. This will be more difficult after the bottom of the lip is carved. Each tooth on the right side should be shortened a bit as they continue toward the back of the mouth. Think of stair steps.

I use a knife tip to divide and shape the teeth. If you need to expose more tooth area, you can do this by lowering the lip line. This will be more difficult after the bottom of the lip is carved. Each tooth on the right side should be shortened a bit as they continue toward the back of the mouth. Think of stair steps.

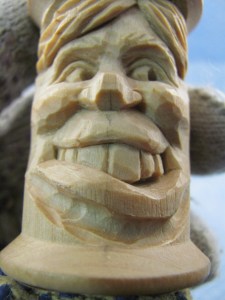

We move to the lower lip. Use the 8mm #11 gouge to cut below a line drawn parallel to the upper edge. This cut will create the bottom edge of the lower lip.

We move to the lower lip. Use the 8mm #11 gouge to cut below a line drawn parallel to the upper edge. This cut will create the bottom edge of the lower lip.

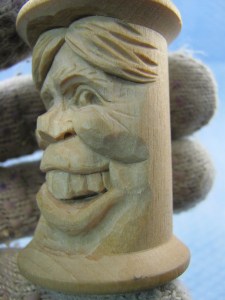

Shape the corners of the mouth and lip with the 10mm #11 gouge. The lower lip tapers as it approaches the corners, both from both the bottom and the side. Notice the vertical opening that connects the upper and lower lips. Leave a little mound of wood on the cheek side of the vertical cut. Continue smoothing the area under the lip toward the sides of the spool. Also notice I used a 2mm #9 gouge to create nostril openings.

Shape the corners of the mouth and lip with the 10mm #11 gouge. The lower lip tapers as it approaches the corners, both from both the bottom and the side. Notice the vertical opening that connects the upper and lower lips. Leave a little mound of wood on the cheek side of the vertical cut. Continue smoothing the area under the lip toward the sides of the spool. Also notice I used a 2mm #9 gouge to create nostril openings.

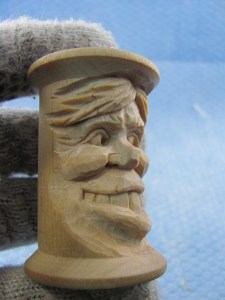

Another view.

Another view.

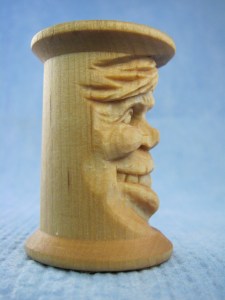

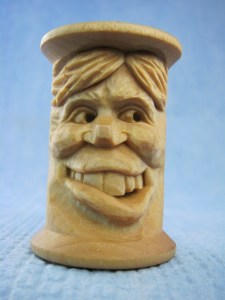

Finished view.

Finished view.

Finished view.

Finished view.























To view more carved spools in my Flicker account, click here.
