Carving a Wooden Thread Spool

I’ve been carving thread spools since the early 1980’s. I can’t recall how many I’ve done but they’ve been great for practice. I’ve done two chess sets. One went to a set collector in Australia. I used to carve a spool in exchange for more spools. After friends passed the word, I now have a lifetime supply. I like to carve them for families that have some of grandma’s spools. Grandchildren can have a memory trigger.

The most common question is about the kind of wood. My research has found that white birch was commonly used. I’ve found some too hard to carve but also, some too soft. Toss the hard ones you find. They’re rough on knife points. I’ve found some with grain blemishes but never with knots. Thread doesn’t work well with sap. The grain is usually pretty straight and sometimes is hard to locate. Manufacture of wooden spools stopped in the mid 1970’s. Of course modern spools are not made of wood so you’ll have to find yours at flea markets, antique stores, or EBAY. You may have friends that never throw anything away and still have a bag of them. You can also use what I call counterfeit spools. They’re made for crafting and have never had thread on them. Some of those are basswood. I like the old ones and like to keep the original labels on them.

Spools come in many sizes and shapes. The one I used for this project is 2 1/8 inches tall and 1 3/16 in diameter. Try to find one a couple of inches tall for your first attempt unless you’re also a watchmaker. The shape may offer special challenges to your creativity. Some spools have a thin waist to allow for more thread. Some are shaped like a barrel. Some are only a half inch tall. My goal is to make the spool into a head rather than a relief carving of a face. There’s more wood available than you think so go deep. Of course a cylinder of wood is just a cylinder and not the proportion of a skull and neck. Space is limited and ears end up close to the eyes or the hair takes up the space for the ear. On most of mine, the edges of the carving just blend into the rest of the spool. Due to poor planning, I sometimes run out of space to develop a chin. Except for long whiskers, walking stick faces can be carved into spools.

Antique bobbins from weaving looms can also be carved. They’re the taller cousins of thread spools. Most of those I’ve found are oak or maple. I like the oak bobbins that have absorbed lots of natural lanolin from wool yarn. The lanolin softens the wood. Otherwise the wood is hard and was chosen because it can take a beating.

I always wear a carving glove to hold the spool. I’ve been told about devices to clamp the spool and allow a better grip. I still recommend a carving glove. After carving and signing the spool, I use Howard’s Feed-n-Wax to completely cover the wood. Buff with an old toothbrush. The tools I used for this project are: 2mm and 4mm V-tools, 8mm and 10mm #11 gouges, 2mm and 3mm #9 gouges, and a knife.

Tools

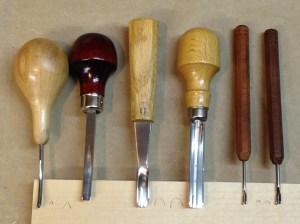

Tools used for this spool. Knife not shown.

The following description appeared in Carving Magazine issue #31. The publisher is now out of business but you may be able to locate a copy somewhere in the woodcarving universe.

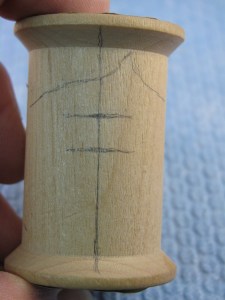

Draw a center line and add lines for the hair. The ends of the hair line just fade into and around the spool. Place the part in the hair to the side of the centerline to add interest. Notice I added a line for the eyes and the bottom of the nose.

Draw a center line and add lines for the hair. The ends of the hair line just fade into and around the spool. Place the part in the hair to the side of the centerline to add interest. Notice I added a line for the eyes and the bottom of the nose.

Use a 4mm V-tool to cut below the hair line. Using a knife, begin to reduce the forehead {continuing the work done with the V-tool.)

Use a 4mm V-tool to cut below the hair line. Using a knife, begin to reduce the forehead {continuing the work done with the V-tool.)

Use an 11 mm #11 gouge to cut the eye line. I used the same tool to reduce the forehead more to allow room for the gouge to deepen the eye line. Check the profile occasionally to gauge the relative depth of the forehead, eyes and nose tip.

Use an 10 mm #11 gouge to cut the eye line. I used the same tool to reduce the forehead more to allow room for the gouge to deepen the eye line. Check the profile occasionally to gauge the relative depth of the forehead, eyes and nose tip.

Cut below the nose at the line. Just use a knife. Make sure the cut deep enough to expose the width of the nose.

Cut below the nose at the line. Just use a knife. Make sure the cut deep enough to expose the width of the nose.

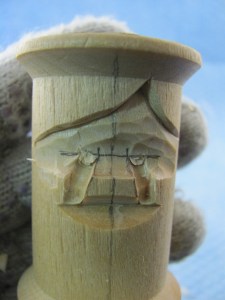

Use an 8mm #11 gouge to define the width of the nose. I like to draw lines before I use the gouge to make sure the nose will be symmetrical. Pencil lines are easily adjusted.

Use an 8mm #11 gouge to define the width of the nose. I like to draw lines before I use the gouge to make sure the nose will be symmetrical. Pencil lines are easily adjusted.

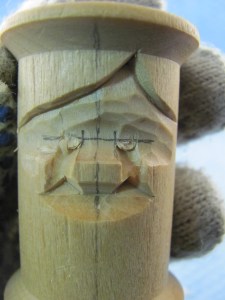

Use a knife to raise the wings of the nose.

Use a knife to raise the wings of the nose.

I taper the nose to resemble a tent. Notice in the picture the bridge of the nose retains a flat area. The nose is small and could break easily, so I carefully use a knife. For a nose this size, I used a 3mm #9 gouge to remove wood from the front of the wings continuing up the sides of the nose into the corner of the eye.

I taper the nose to resemble a tent. Notice in the picture the bridge of the nose retains a flat area. The nose is small and could break easily, so I carefully use a knife. For a nose this size, I used a 3mm #9 gouge to remove wood from the front of the wings continuing up the sides of the nose into the corner of the eye.

I use the 3mm #9 again to form the outside edge of the wings. Make a stop cut by pushing the gouge in at an angle that causes the tool handle to extend across the center line. This way you avoid cutting behind the wing. With the same tool, make the removal cut by cutting into the cheek.

I use the 3mm #9 again to form the outside edge of the wings. Make a stop cut by pushing the gouge in at an angle that causes the tool handle to extend across the center line. This way you avoid cutting behind the wing. With the same tool, make the removal cut by cutting into the cheek.

Use an 8mm #11 to develop the eye area. Be sure to reserve space between the eyes at the top of the nose to be able to start working in the eyebrows.

Use an 8mm #11 to develop the eye area. Be sure to reserve space between the eyes at the top of the nose to be able to start working in the eyebrows.

Use the 10mm #11 to narrow the face at the eye line and a knife to smooth the ridges at the temple.

Use the 10mm #11 to narrow the face at the eye line and a knife to smooth the ridges at the temple.

Use a #9 gouge to separate the eyebrows. I used a 3mm. The forehead was not recessed enough so I used a knife to push it back. Using the area near the tip of the blade, roll the brow up to the hair line, leaving the brow area for some eyebrow hair later.

Use a #9 gouge to separate the eyebrows. I used a 3mm. The forehead was not recessed enough so I used a knife to push it back. Using the area near the tip of the blade, roll the brow up to the hair line, leaving the brow area for some eyebrow hair later.

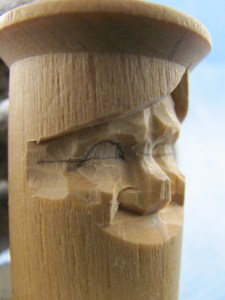

t helps to redraw the eye line and upper eyelid line. Using a very sharp 2mm V-tool, cut the upper eyelid line. Notice this cut dips slightly below the eye line and continues around the head.

It helps to redraw the eye line and upper eyelid line. Using a very sharp 2mm V-tool, cut the upper eyelid line. Notice this cut dips slightly below the eye line and continues around the head.With the knife tip, lightly trace the lid cuts to make a stop-cut. Still using the knife, remove a tiny amount of wood below the stop-cut. Using the V-tool again, make a cut parallel and slightly below the lid line. This cut makes the lower edge of the upper lid. Again use the knife tip to trace the new cut and remove wood while shaping what will become the eye ball.

Here is another view of the eye cuts.

Here is another view of the eye cuts.

With the knife tip, lightly trace the lid cuts to make a stop-cut. Still using the knife, remove a tiny amount of wood below the stop-cut. Using the 2mm V-tool, make a cut parallel and slightly below the lid line. This cut makes the lower edge of the upper lid. Again use the knife tip to trace the new cut and remove wood while shaping what will become the eye ball.



Use the V-tool again to define the upper edge of the lower lid. Because space is limited, I start these cuts in the middle and toward the corners. Remember the lower lid is shorter than the upper lid.

Use the V-tool again to define the upper edge of the lower lid. Because space is limited, I start these cuts in the middle and toward the corners. Remember the lower lid is shorter than the upper lid.

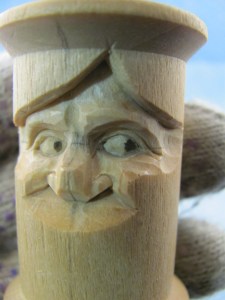

Trace the v-cut and use the knife tip to clean and shape the eyeball. Remember to remove a little triangle from each corner of the eye to create the impression of a ball. Try to eliminate flat spots on the exposed ball. I like to mark the iris/pupil location with a pencil before committing to the cut. To make him look more interesting, I’ll have him look to his left.

Trace the v-cut and use the knife tip to clean and shape the eyeball. Remember to remove a little triangle from each corner of the eye to create the impression of a ball. Try to eliminate flat spots on the exposed ball. I like to mark the iris/pupil location with a pencil before committing to the cut. To make him look more interesting, I’ll have him look to his left.



I take the easy way out on these tiny eyes by just making a negative space for the iris/pupil. For this face, a 2mm #9 just fits between the upper and lower lids. Push straight in and avoid nicking the lids. I use the point of my knife and sometimes a 1.5 mm #9 to remove the wood and create the shadow.

I take the easy way out on these tiny eyes by just making a negative space for the iris/pupil. For this face, a 2mm #9 just fits between the upper and lower lids. Push straight in and avoid nicking the lids. I use the point of my knife and sometimes a 1.5 mm #9 to remove the wood and create the shadow.



Now for a few last details around the eyes. Reduce the outside end of the lower lid to create a tiny shadow that suggests the lower lid is covered by the upper one. Use the small V-tool to cut a lower lid line curving like a reclining “S”. With a knife, round over any ridges and blend the brow with the rest of the face. While you’re rounding and shaping, work on the cheek mounds. Use the small V-tool to add a few eyebrow hairs. Don’t get carried away. A few will do.

Now for a few last details around the eyes. Reduce the outside end of the lower lid to create a tiny shadow that suggests the lower lid is covered by the upper one. Use the small V-tool to cut a lower lid line curving like a reclining “S”. With a knife, round over any ridges and blend the brow with the rest of the face. While you’re rounding and shaping, work on the cheek mounds. Use the small V-tool to add a few eyebrow hairs. Don’t get carried away. A few will do.

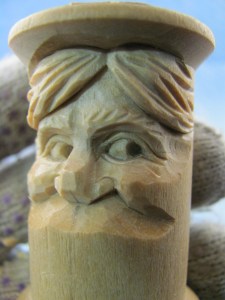

We can finish the hair now. Use a knife to remove ridges and taper both sides toward the part. I use either of the V-tools to add random hair lines (sometimes both). The hair lines shouldn’t be cut completely from end to end - they should be carved to suggest they’re going to meet at the part. Just blend them into the spool as they disappear around the sides. Don’t go around too far or the viewer will expect as much detail on the rest of the head. You can cut up into the flared part of the spool to round the top of the hair and get a few more strands. Remember the cuts will be across the grain so have a sharp tool. Notice the extension of the smile lines.

We can finish the hair now. Use a knife to remove ridges and taper both sides toward the part. I use either of the V-tools to add random hair lines (sometimes both). The hair lines shouldn’t be cut completely from end to end – they should be carved to suggest they’re going to meet at the part. Just blend them into the spool as they disappear around the sides. Don’t go around too far or the viewer will expect as much detail on the rest of the head. You can cut up into the flared part of the spool to round the top of the hair and get a few more strands. Remember the cuts will be across the grain so have a sharp tool. Notice the extension of the smile lines.

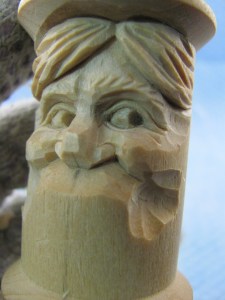

Even though the spool is round, the mouth and teeth must fit the head. Remember grandpa’s dentures were not as wide as his head. We’re going to concentrate on the dental mound. Use an 10mm #11gouge to deepen the area under each cheek. Because the muscles stretch the mouth a little, the mouth will be a little wider than the distance between the center points of the eyes. Use a knife to shape the upper lip back into the area prepared under the cheeks. Draw the lip line. Notice the ends do not touch the expression lines that form the cheeks.

Even though the spool is round, the mouth and teeth must fit the head. Remember grandpa’s dentures were not as wide as his head. We’re going to concentrate on the dental mound. Use an 10mm #11gouge to deepen the area under each cheek. Because the muscles stretch the mouth a little, the mouth will be a little wider than the distance between the center points of the eyes. Use a knife to shape the upper lip back into the area prepared under the cheeks. Draw the lip line. Notice the ends do not touch the expression lines that form the cheeks.

Read above.



Use a V-tool to remove wood under the lip line. Use a knife to trace a stop cut into the v-cut and continue removing more wood below the lip.

Use a V-tool to remove wood under the lip line. Use a knife to trace a stop cut into the v-cut and continue removing more wood below the lip.



Draw the upper edge of the lower lip and cut above it with the V-tool. Once again trace the cut and begin removing wood to shape the teeth. Keep in mind the teeth should appear to protrude from behind the upper lip and tuck behind the lower lip. The curve of the teeth should be the same on both sides of the center line. Invert the spool to double check the balance. Because the lower lip dips below the upper teeth on the right side, mark a line for the lower edge of the teeth. I use a knife to create the negative space between the teeth and the lower lip. Rest the blade on the lip as a guide. This will make the lip disappear into the mouth. A variation of this face could show a lower tooth (or two) instead of the opening.

Draw the upper edge of the lower lip and cut above it with the V-tool. Once again trace the cut and begin removing wood to shape the teeth. Keep in mind the teeth should appear to protrude from behind the upper lip and tuck behind the lower lip. The curve of the teeth should be the same on both sides of the center line. Invert the spool to double check the balance. Because the lower lip dips below the upper teeth on the right side, mark a line for the lower edge of the teeth. I use a knife to create the negative space between the teeth and the lower lip. Rest the blade on the lip as a guide. This will make the lip disappear into the mouth. A variation of this face could show a lower tooth (or two) instead of the opening.



Lay out the teeth with a pencil. Start with the center teeth. They should be the same width. The teeth on the left side are easy because they just get tiny cuts to create a shadow between them. Because the right side of the mouth exposes more of each tooth, and maybe one more than on the left, most of the work is done there. Remember the curve has already been established so avoid changing it as the teeth are defined. Note how I have created a shadow inside the mouth at the back tooth. Remove wood from inside the cheek, not the tooth, to achieve this effect.

Lay out the teeth with a pencil. Start with the center teeth. They should be the same width. The teeth on the left side are easy because they just get tiny cuts to create a shadow between them. Because the right side of the mouth exposes more of each tooth, and maybe one more than on the left, most of the work is done there. Remember the curve has already been established so avoid changing it as the teeth are defined. Note how I have created a shadow inside the mouth at the back tooth. Remove wood from inside the cheek, not the tooth, to achieve this effect.



I use a knife tip to divide and shape the teeth. If you need to expose more tooth area, you can do this by lowering the lip line. This will be more difficult after the bottom of the lip is carved. Each tooth on the right side should be shortened a bit as they continue toward the back of the mouth. Think of stair steps.

I use a knife tip to divide and shape the teeth. If you need to expose more tooth area, you can do this by lowering the lip line. This will be more difficult after the bottom of the lip is carved. Each tooth on the right side should be shortened a bit as they continue toward the back of the mouth. Think of stair steps.



We move to the lower lip. Use the 8mm #11 gouge to cut below a line drawn parallel to the upper edge. This cut will create the bottom edge of the lower lip.

We move to the lower lip. Use the 8mm #11 gouge to cut below a line drawn parallel to the upper edge. This cut will create the bottom edge of the lower lip.



Shape the corners of the mouth and lip with the 10mm #11 gouge. The lower lip tapers as it approaches the corners, both from both the bottom and the side. Notice the vertical opening that connects the upper and lower lips. Leave a little mound of wood on the cheek side of the vertical cut. Continue smoothing the area under the lip toward the sides of the spool. Also notice I used a 2mm #9 gouge to create nostril openings.

Shape the corners of the mouth and lip with the 10mm #11 gouge. The lower lip tapers as it approaches the corners, both from both the bottom and the side. Notice the vertical opening that connects the upper and lower lips. Leave a little mound of wood on the cheek side of the vertical cut. Continue smoothing the area under the lip toward the sides of the spool. Also notice I used a 2mm #9 gouge to create nostril openings.

Another view.

Another view.

Finished view.

Finished view.

Finished view.

Finished view.























To view more carved spools in my Flicker account, click here.







Dim Bulbs

A friend of mine, Rod Beamish from Indiana, showed a bunch of really cute carved ornaments to me a few years ago. I’ve carved a couple dozen of them myself since then and thought I would pass along some tips to encourage others to try carving “Dim Bulbs”.

Screen Shot 2013-09-08 at 5.31.52 PM Screen Shot 2013-09-08 at 5.30.47 PM Screen Shot 2013-09-08 at 5.30.33 PMIMG_0936 Screen Shot 2013-09-08 at 5.30.01 PM Screen Shot 2013-09-08 at 5.29.37 PM Screen Shot 2013-09-08 at 5.28.07 PMScreen Shot 2013-09-09 at 10.33.17 AM

The following description will not be carving instructions as much as tips and shortcuts for those who already know how to carve a corner face. Most corner faces are done for practice or demonstration. When finished, you just have a face on the corner of a scrap of wood. This project will allow you to practice and have something “useful” when you’re done. I’m going to describe the process to prepare the wood and offer some tips to shape the wood before actually carving a face.

I used Rod’s blank to create my own cardboard pattern. The pattern is for 4 ornaments. That’s done to allow more wood to grasp while working on each small ornament. You could increase the number of ornaments on the blank but at some point you’ll cause a problem for yourself. If you have ever carved a walking stick or cane, you know how unwieldy a long stick can be.  Click here to link to a PDF for Dim Bulb Pattern.

Cardboard pattern

Cardboard pattern

Take special care when making this pattern so each ornament is the same width and the edges fall in straight line. This will help when it’s time to draw a center line. Trace the pattern onto two adjacent sides of a piece of wood. Allow about a quarter of an inch of scrap wood on both sides of the pattern. Make sure the pattern is centered on both sides of the wood.

Pattern on one side

Pattern on one side

Pattern on adjacent sides

Use a band saw or scroll saw to cut the pattern on one side of the wood. Make one cut on each side of the pattern so you have three pieces of wood after this step.

First side after cutting

First side after cutting

Some people will leave a small section of the line uncut on each side of the blank. That way the scrap will remain attached to the blank for cutting the adjacent side. I prefer to use a one-inch piece of double-sided carpet tape to hold each scrap piece onto the blank while I cut the adjacent side.

After first cut on adjacent side

After first cut on adjacent side

Making the cuts on the adjacent side will produce the completed blank. If you used the “incomplete cut” method on the first side, return to the that side and carefully finish removing the scrap pieces. If you use the tape method, pull the scrap from the original side and remove any tape still sticking to the blank. You will have a blank with 4 corners.

Blank with all scrap pieces

Now is the time to mark a center line on all four sides of the blank. I have a useful tool made by Dave Rushlo. It holds a pencil and is adjustable. It’s great for drawing a center line on blocks of wood or anything where you need a line drawn parallel to a flat surface.

Blank with center line

Blank with center line

The center line defines the widest point of each ornament so as you round three of the four corners to form the back, you’ll leave the line and follow the directions below. The center lines, to the left and right of the fourth corner, define the boundaries for the face. The center line also helps when transforming the square area at the top of each ornament into a cylinder in preparation for the “threads”.

A line should also be drawn between each ornament. This serves as a reminder to reserve enough wood for the “threaded” cylinder as you form the bottom of the ornament above it.

Line at top of each ornament. Bottom of ornament drawn for visual aid

You can start with any of the ornaments but I recommend shaping the backs and tops of all of them before carving the faces.  I choose a corner of the blank that I think has the strongest grain for the noses or a corner free from blemishes. I like to remove some wood from each of the three corners I intend to round over. That way I don’t remove a nose by mistake.

Another tip I can offer is when rounding a corner, remove the center third of the area between it’s left and right center lines.  Note the red lines in the photo. Then remove the ridges (the red lines) formed by those cuts trying to use the “thirds” method again.

Using the “thirds” method to help with symmetry.

This should create a balanced and more rounded area. You’ll still need to make many more smaller cuts to smooth the rounded quarter before repeating the process on the other corners.

Back corner rounded.

Top view of back corner rounded.

You’ll have to carefully cut off the center lines on the back of each ornament to remove the original saw cuts and make the adjacent quarters blend. Remember, the center lines are located on the widest dimension of the ornament so the more wood you remove at that line, the thinner your ornament will become.

Front view of top ornament after rounding back three corners.

Front view after rounding back three corners.

The area for the “threads” should just be roughed out. Remember there is a small bit of wood in the center of the top of each ornament. It represents the contact point between the ornament and the circuit in a real light socket.

Screen Shot 2013-09-08 at 8.03.48 PM Screen Shot 2013-09-08 at 8.04.24 PM

IMG_0922

Faces and cylinders carved

IMG_0923

Adding “contact” point to top of cylinder

IMG_0924

Lines drawn for “threads”

Add the “threads” after the ornaments have been separated. To do this, I draw a lite pencil line for guidance.  I like to start at the top of the cylinder above the center of the face. It would be great to finish the thread-cut right below the starting point but that doesn’t always happen. The threads would never work for real but the suggestion of real threads is more convincing if you see the beginning and the end of them as you view the face.  On the back my threads are almost horizontal. I use a 3mm # 11 or  #9 to cut the threads. I have a Dockyard brand tool that size.

IMG_0927

Cutting the

Cutting the “threads”

After painting, use a small awl or large needle to make a pilot hole in the center of the contact point.

IMG_0931

Add a small screw eye to allow hanging.

IMG_0932

IMG_0950 IMG_0949 IMG_0948 IMG_0945

Click here to view more Dim Bulbs in my Flicker account.

I hope this provides enough detail to get your creative juices flowing. Happy carving.
